domeprojection ProjectionTools - Warp and Blend Software Solution

What are the domeprojection ProjectionTools?

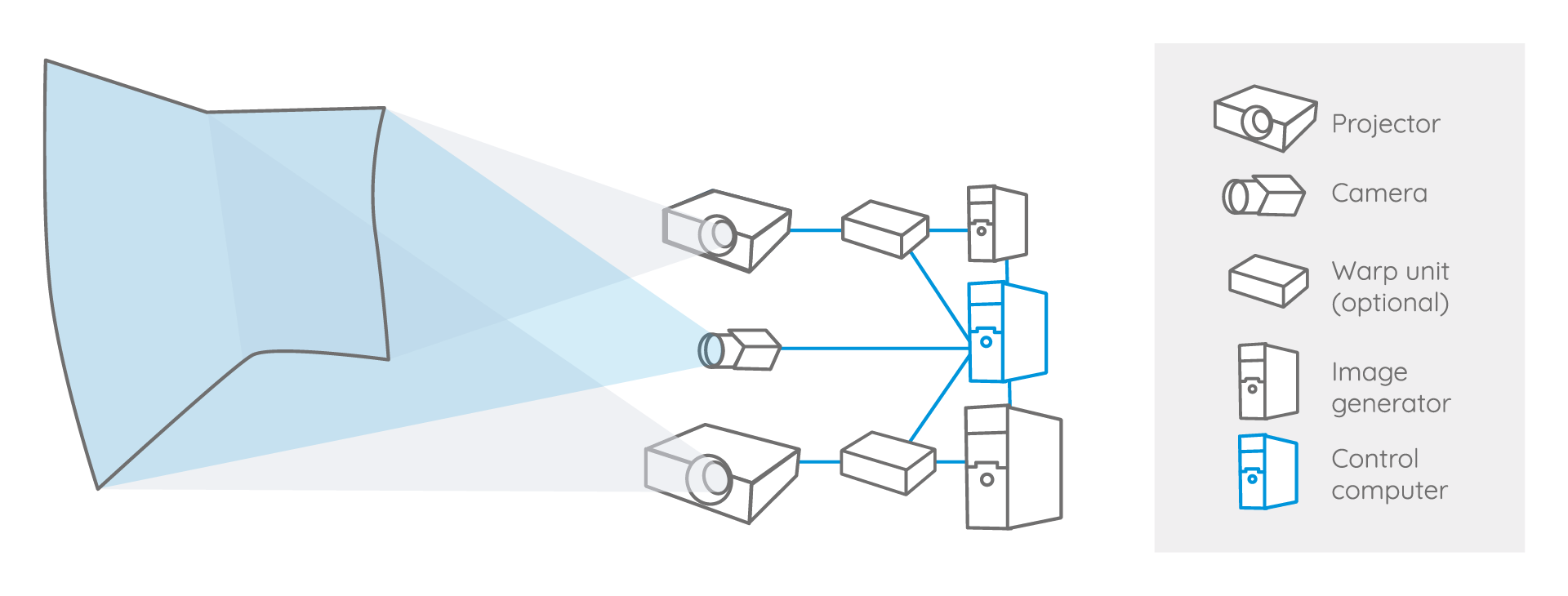

domeprojection ProjectionTools is the most versatile auto alignment software designed to align multiple projectors for any screen shape. With ProjectionTools, you can achieve seamless multi channel projection, delivering perfect warping and blending results, matched geometry, and the highest color and image quality.

It is scalable from portable, easy-to-use single-camera systems for screens that can be captured by one camera (also supports fisheye lenses) to high-end fixed installations that require multi-camera calibration.

Get the Demo Version here!

  • ProjectionTools Pro AV

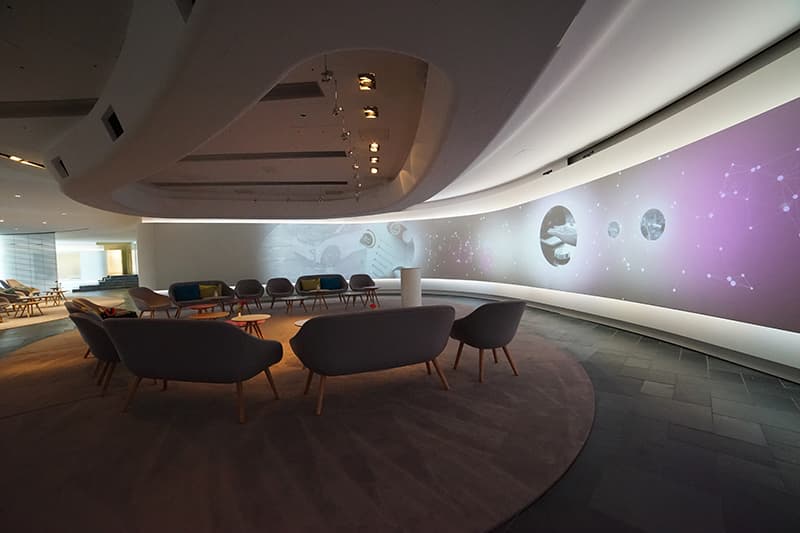

    Pro AV Suite is a comprehensive software package designed for the careful configuration of large media installations, deftly managing well-organised projector setups with over 100 channels.

    Read more

  • ProjectionTools Pro SIM

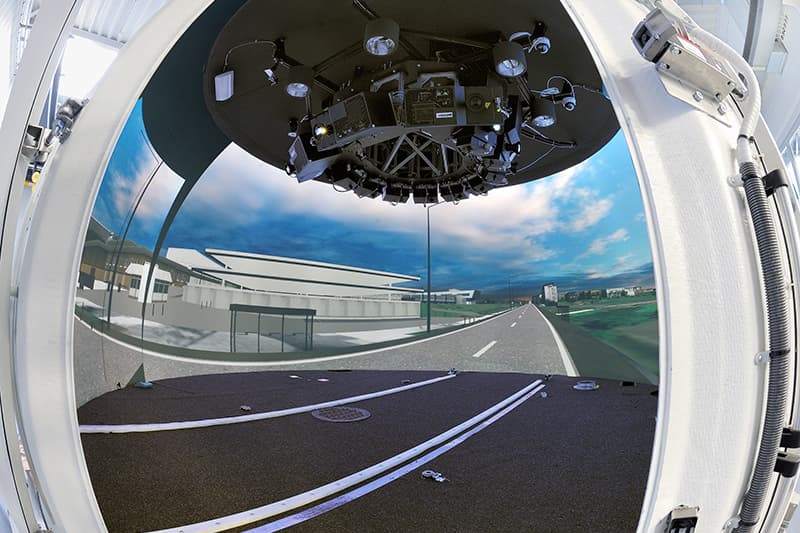

    Pro SIM is the toolset for all tasks with demanding requirements for maximum precision and accuracy.

    Read more

domeprojection Plugin Technology

domeprojection nWarp

Warping and blending solution

nWarp offers an optimal solution for executing warping and blending tasks directly on graphics cards.

Desktop warping is achieved using a standard MS Windows PC in conjunction with an NVIDIA RTX graphics card, catering to both professional and private applications.

Learn more

Color Calibration for Projectors

Color Calibration with ColorMatch

For a visually appealing and uniform projection, a calibration of the color spectrum of the projectors is necessary.

domeprojection calls this process ColorMatch. For this purpose, the so-called gamut of each projector is determined by means of a measuring device. We use photogrammetrical measuring methods and color measurement instruments for e.g. from JETI Technische Instrumente GmbH or Konica Minolta..

The results of all projectors are compared. A common gamut is calculated, which can be reached by all projectors. Uniform brightness is also defined and a compliant white point is calculated and set. The results of all calculations are finally loaded onto each projector. Currently, we are able to apply this precision process to Zeiss, Sony, Digital Projection and Barco projectors.

Are you interested in ColorMatch?

contact us

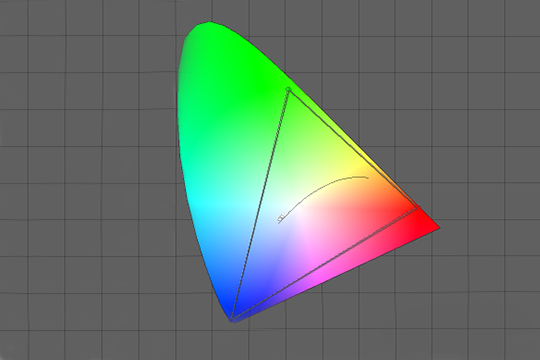

Gamut of a projector, measured for ColorMatch
